Precise temperature control is one of the hardest engineering problems in an automatic film developing machine. This experiment used 38°C as its reference, but the working temperature and tolerance must come from the selected chemistry’s instructions. For an autonomous machine, I needed to compare how quickly each heating approach brought the liquid toward that reference and how much its recorded temperature varied afterward.
I compared five heating approaches in six configurations, including runs with and without active stirring. These are the original results; the later processor experiments linked below add process-container and transfer measurements rather than replacing this dataset.
Methods Tested
All tests started from room temperature (~29°C) and targeted 38°C. The heating element in each case was a USB-powered silicone pad set to the same wattage. Two channels were measured: the target solution (the chemical bottle/jar) and the heater surface itself.
- Jacket No Mix — silicone heater wrapped around the outside of the container, no stirring
- Jacket Mix — same heater jacket, with magnetic stirrer running
- Air No Mix — heater inside an air-filled silicone bag placed around the container, no stirring
- Air Mix — air bag heater with stirrer
- Box Everything — container and heater placed inside an insulated box
- Waterbath Ref — container submerged in a heated waterbath (professional reference method)
Results
The most striking observation is the heater overshoot visible in the top row: without active mixing, the heater surface reaches 80–90°C while the solution barely climbs. The energy is there — it just isn’t transferring efficiently.

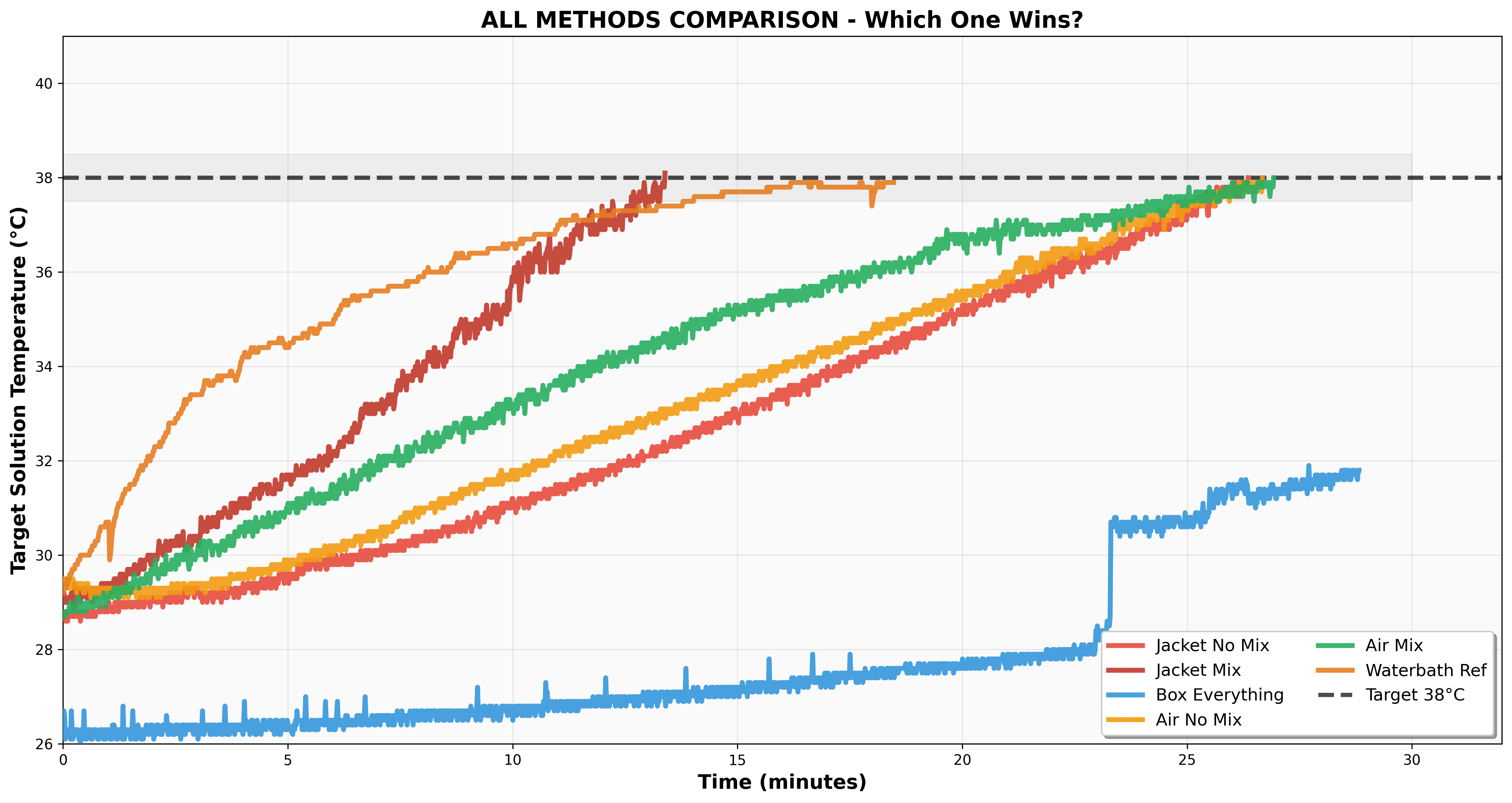

Winner: Jacket + Stirrer

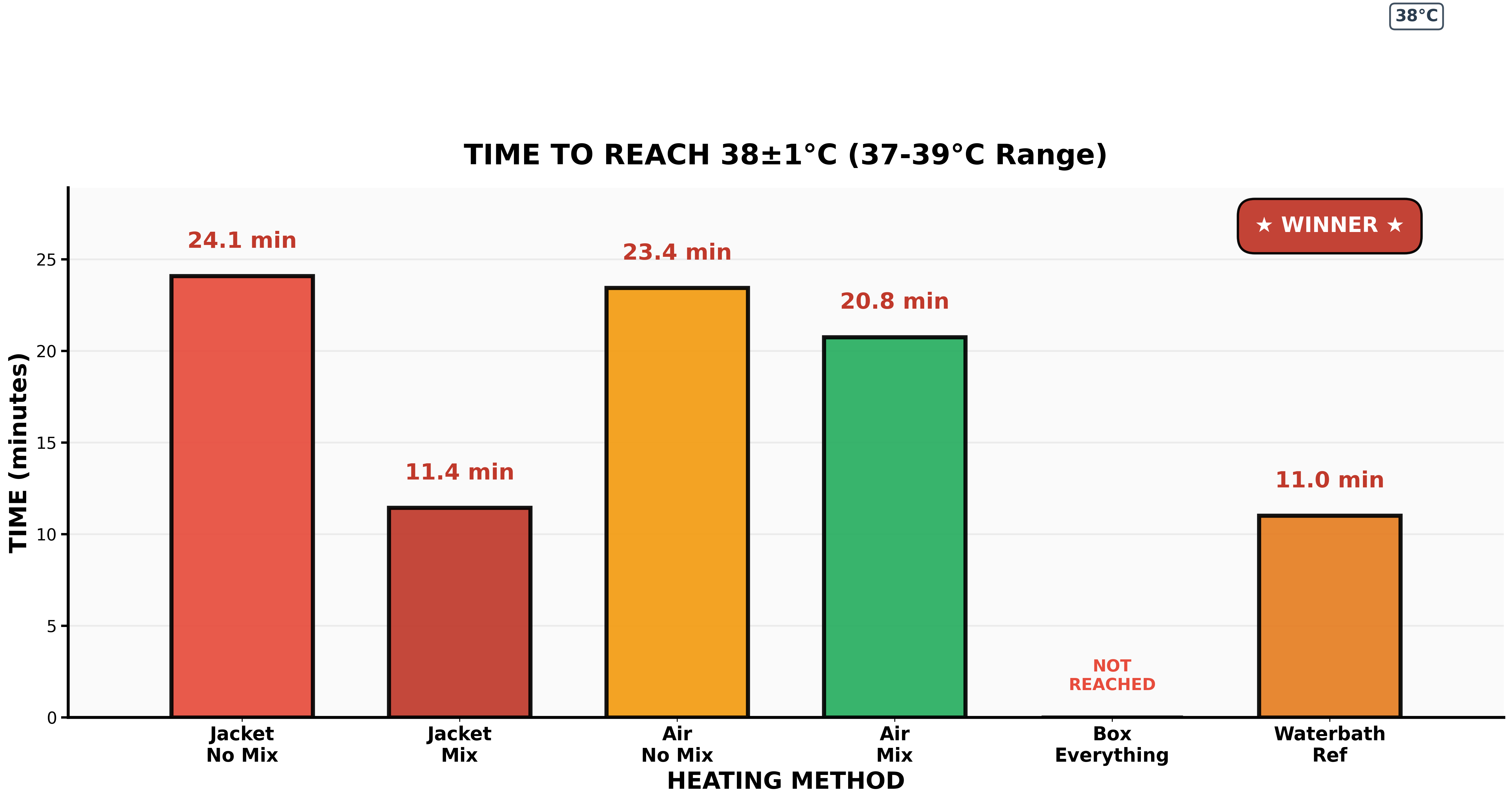

The Jacket Mix method’s reported target-reaching time was 11.4 minutes, close to the waterbath reference’s 11.0 minutes. No repeated-run uncertainty is provided here, so this is a numerical comparison rather than demonstrated statistical equivalence. Every other configuration took 20+ minutes or failed to reach the plotted criterion within the recording.

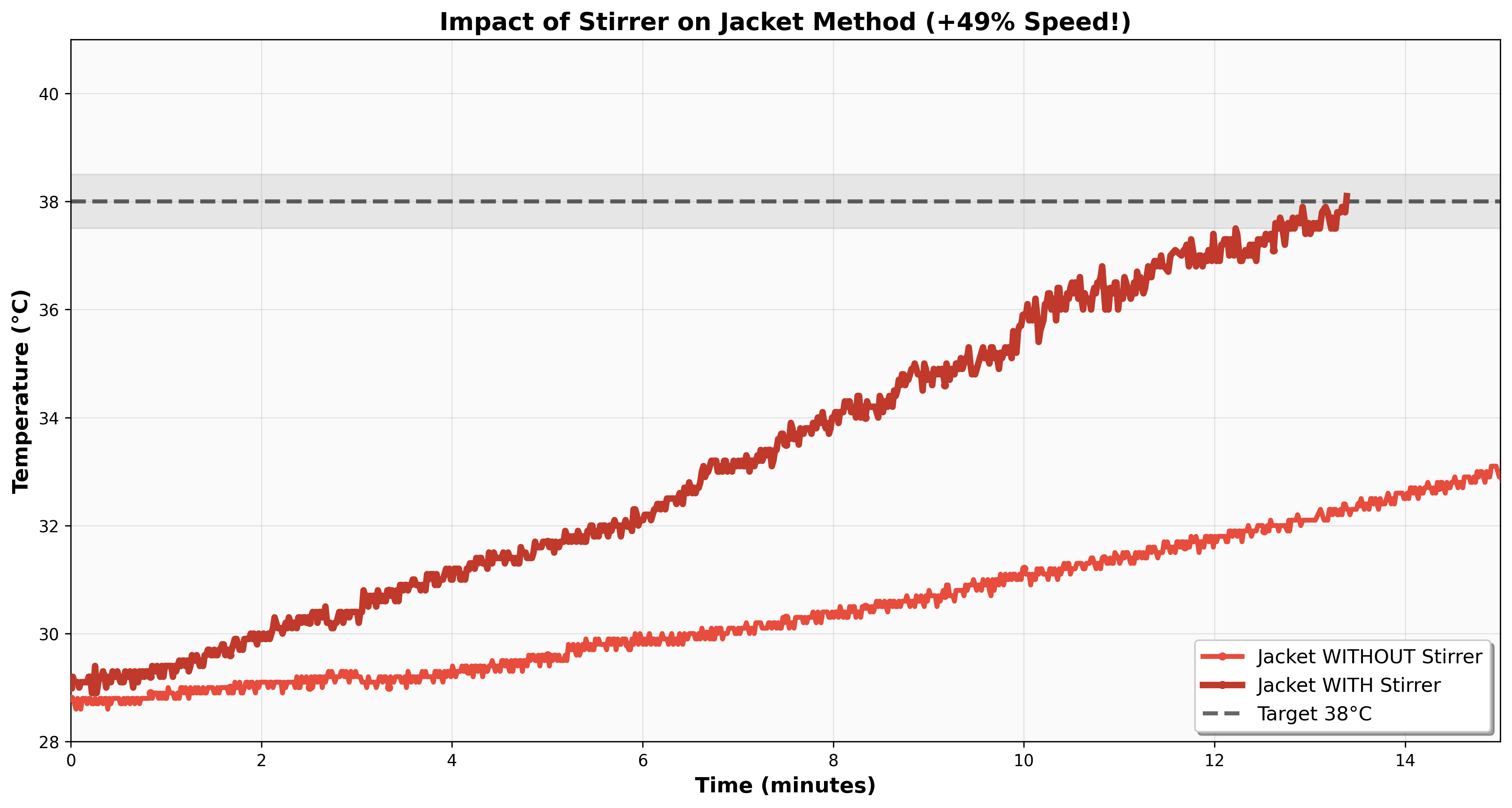

The stirrer made an enormous difference for the jacket method: +49% speed compared to jacket without stirring.

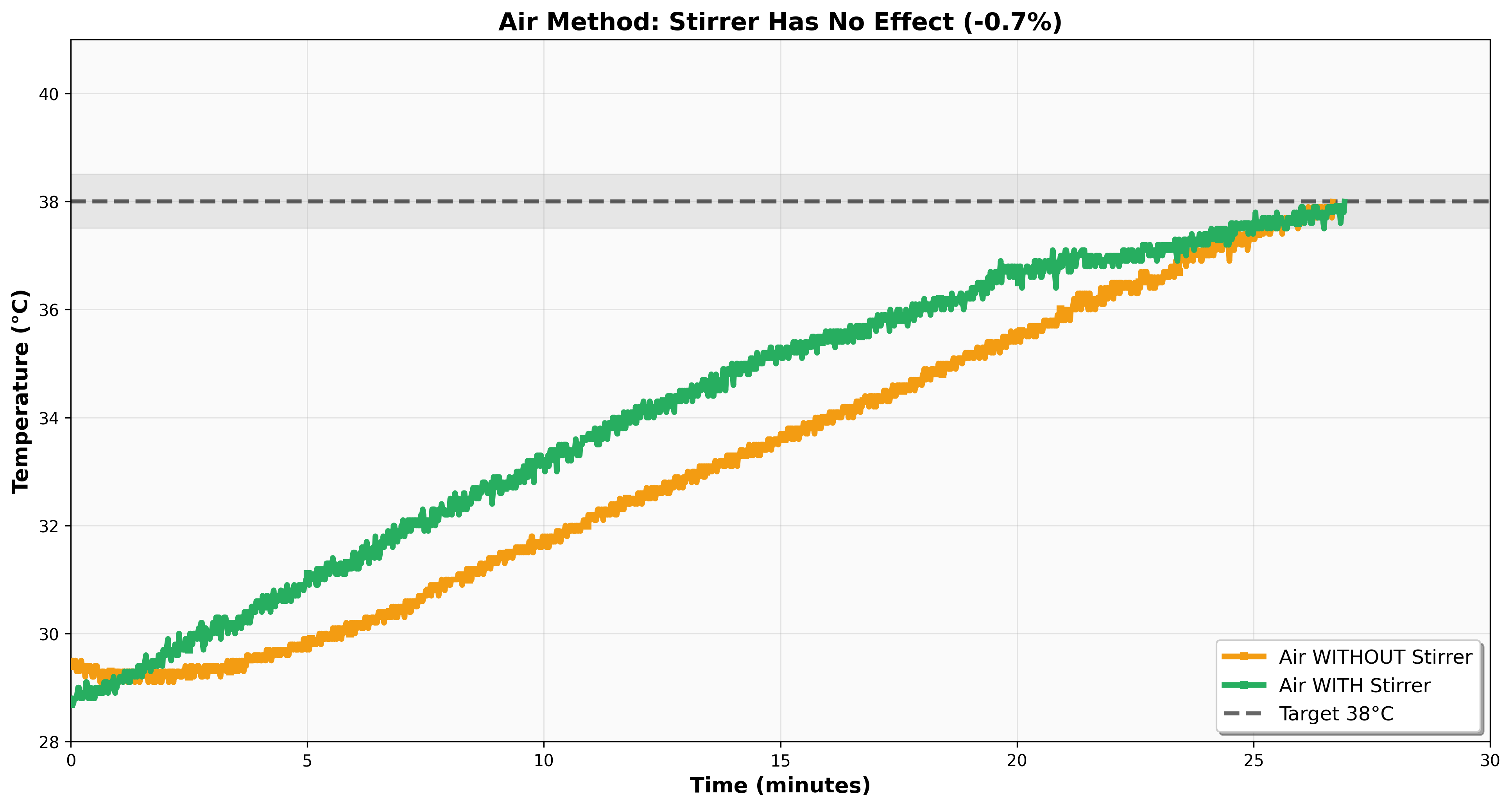

Interestingly, stirring had almost no effect on the air bag method (−0.7%). The air bag creates a thermal buffer layer that stirring can’t overcome — the bottleneck is conduction through the air gap, not convection inside the jar.
Temperature Stability at Target
Speed matters for getting to 38°C. Stability matters for staying there.

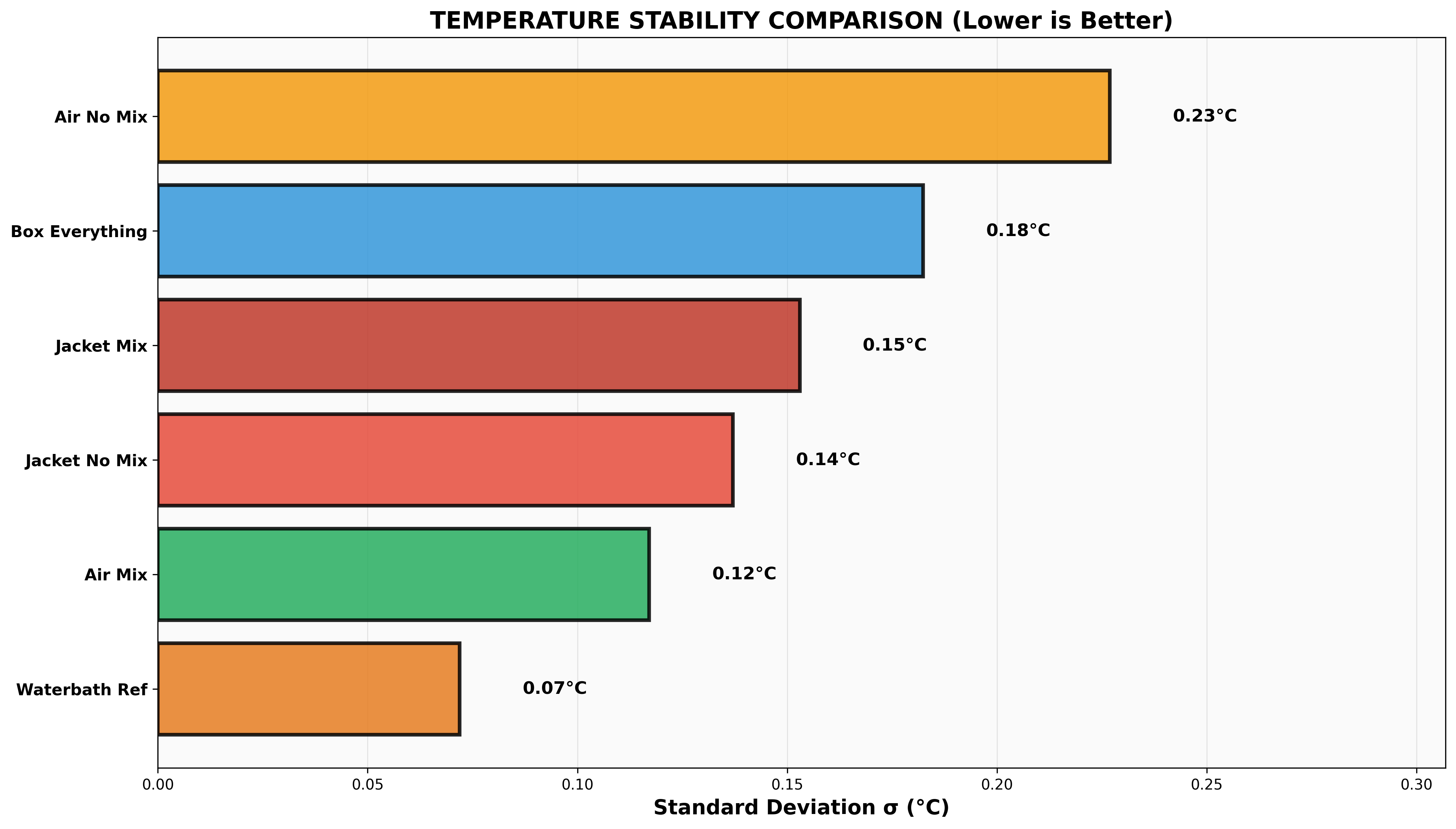

The waterbath reference had the smallest recorded standard deviation, σ = 0.07°C. Air Mix recorded σ = 0.12°C, and Jacket Mix σ = 0.15°C. These describe variation in the selected windows. They are not bounds on every sample or measurements of absolute accuracy, and cannot by themselves demonstrate compliance with a chemistry’s temperature tolerance.
Channel Detail: Air Bag
The air bag channels show the thermal lag clearly: the heater packet reaches 38°C well before the solution, with a final temperature difference of only 0.9°C at the measurement endpoint. Without stirring, the heater keeps overshooting while the solution slowly catches up.
Channel Detail: Waterbath

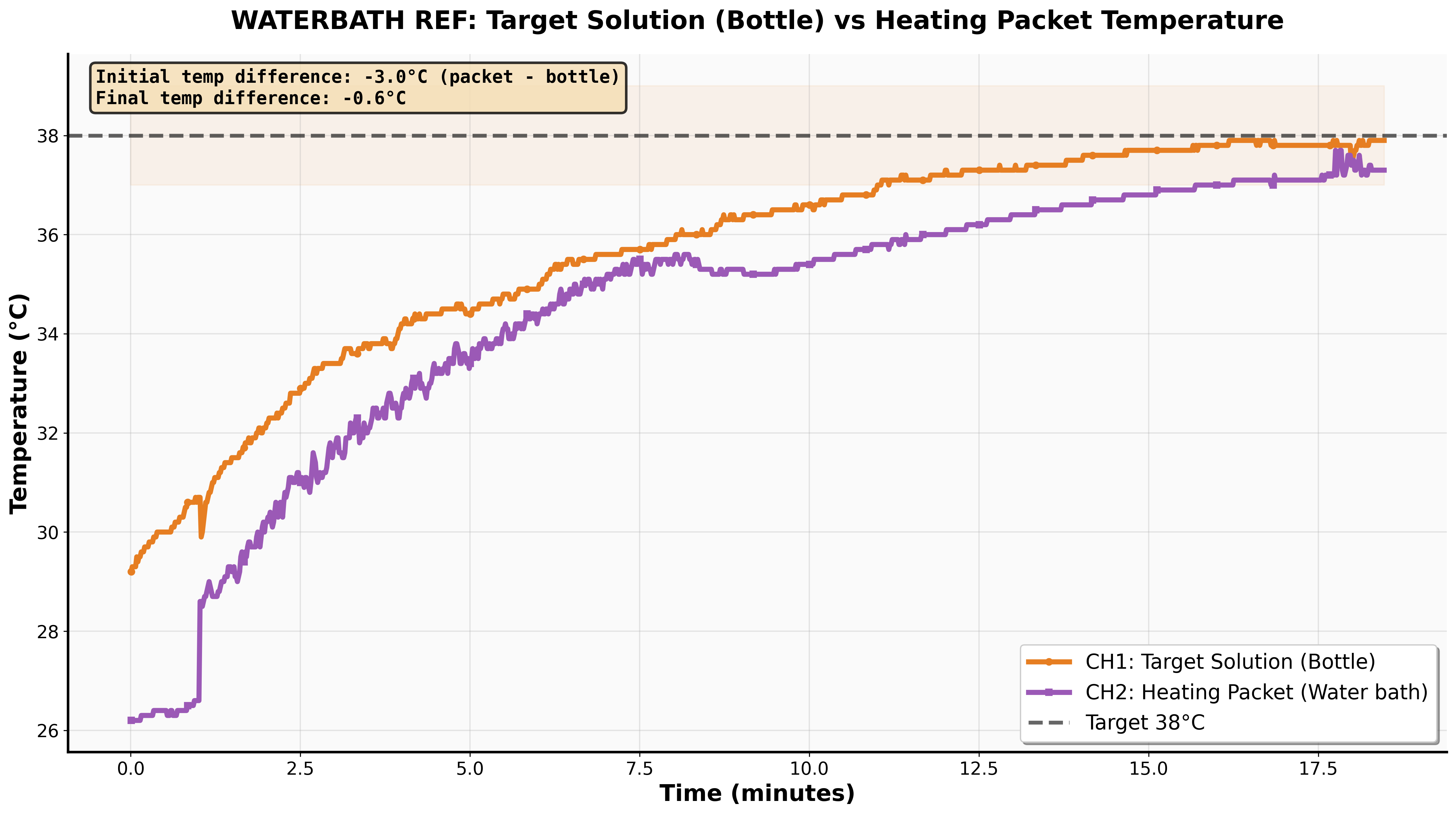

The waterbath reference shows the ideal case: heater and solution temperatures converge tightly (−0.6°C final delta), and the overall temperature rise is smooth and linear. This is the benchmark the machine design needs to approach.
Conclusions
| Method | Time to 38±1°C band | Stability (σ) | Verdict in this comparison |
|---|---|---|---|
| Jacket Mix | 11.4 min | 0.15°C | Best for machine |
| Waterbath Ref | 11.0 min | 0.07°C | Reference only |
| Air Mix | 20.8 min | 0.12°C | Too slow |
| Air No Mix | 23.4 min | 0.23°C | Too slow, unstable |
| Jacket No Mix | 24.1 min | 0.14°C | Too slow |
| Box Everything | NOT REACHED | 0.18°C | Fails |
Jacket plus stirring was the most promising compact arrangement in this comparison. It approached the waterbath’s reported speed with a small recorded variation. That was a prototype direction, not a finished-machine qualification. Actual container geometry, mixing, sensor accuracy, and full-cycle performance still determine whether it meets process requirements.
The next step is integrating a PID controller to replace the fixed wattage heater and bring stability closer to the waterbath reference. The stirrer speed will also be tuned — the current test used a fixed RPM, and there is likely an optimal speed that improves heat transfer without creating turbulence that disrupts the film reel.
